Laser Ceramic Ring D28 M11 D32 M14 Nozzle Holder for Raytools Precitec WSX Boci Laser Head
D28 M11
$3.20
Sale price
$3.20
Regular price
Skip to product information
Laser Ceramic Ring D28 M11 D32 M14 Nozzle Holder for Raytools Precitec WSX Boci Laser Head
$3.20
Sale price
$3.20
Regular price

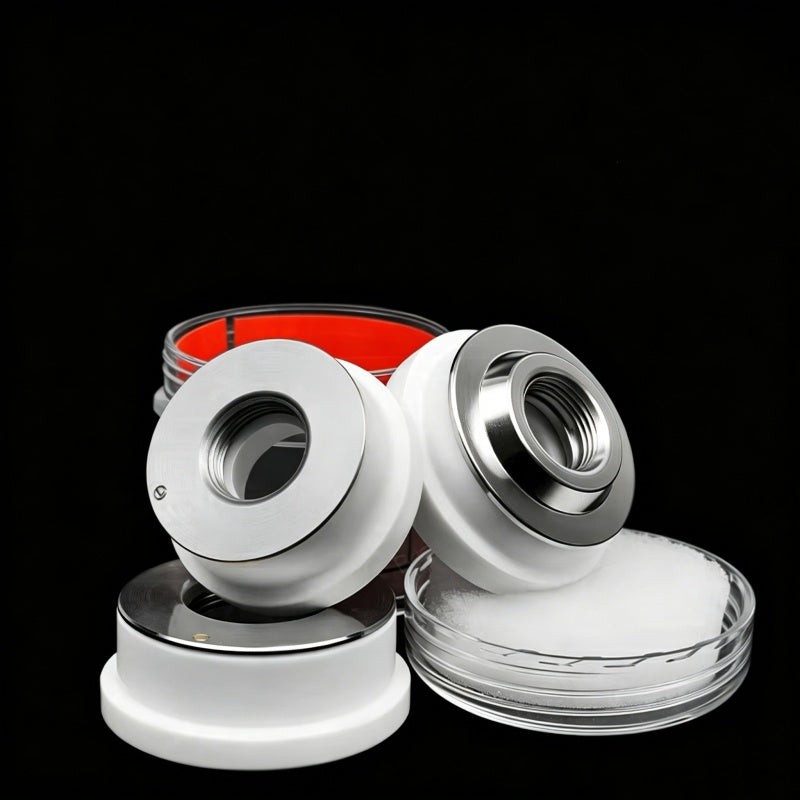

Multi-Size Laser Ceramic Ring Nozzle Holder
Laser ceramic ring is a core consumable part for fiber laser cutting heads. It is widely compatible with Raytools, Precitec, WSX, Boci etc.

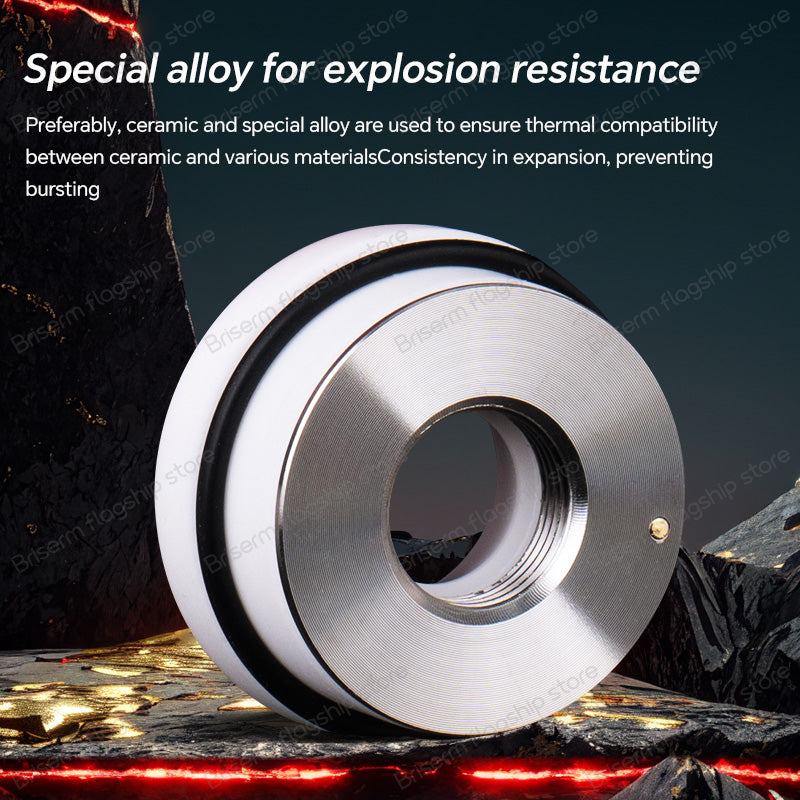

Adopting premium ceramic and alloy composite materials, it features stable thermal expansion performance, excellent insulation and high sensitivity signal stability, effectively protecting your laser cutting head and sensor system.
Available Size Specifications
-
Normal D28: 28mm Diameter, M11 Thread, 12mm Thickness
-
Normal D32: 32mm Diameter, M14 Thread, 12mm Thickness
-
Precitec KTX: 31mm Diameter, M15 Thread, 10.5mm Thickness
-
Precitec KTXB: 31mm Diameter, M11 Thread, 13.5mm Thickness
-

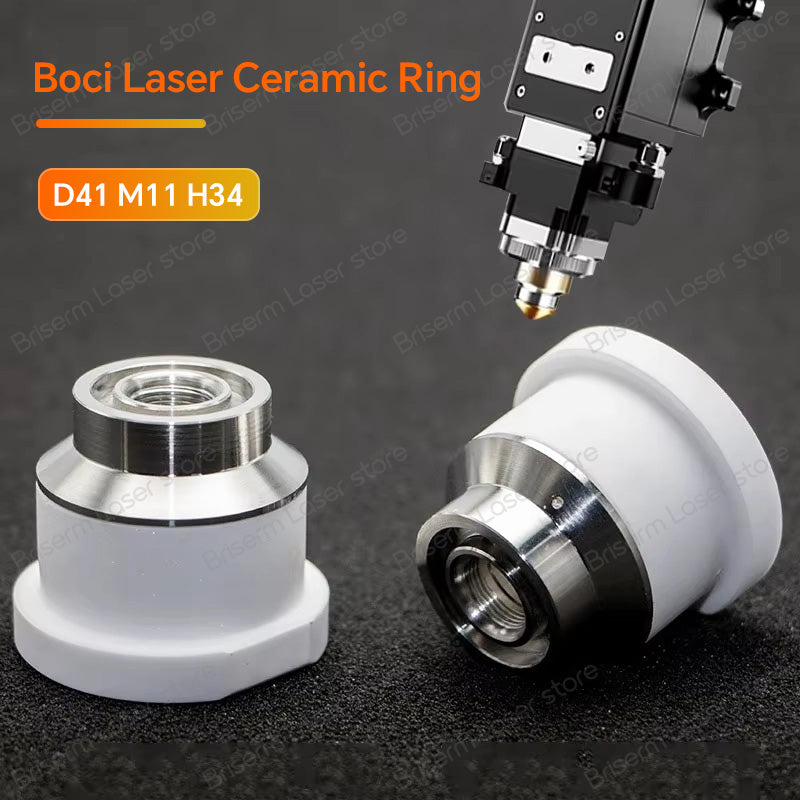

Boci D41 M11*0.75: Fit BLT310/BLT420/BLT420S/BLT440F/BLT421/BLT441/BLT461 series
-
Boci D20 M8*0.75: Fit BLT310T/BLT421T/BLT441T/BLT461T/BLT520H/BLT540H/ BLT510/BLT560H series
