If you’ve ever struggled with rough cut edges, excess slag, or inconsistent laser performance, chances are your laser nozzle is the culprit. Often overlooked as a simple “copper cap,” the laser cutting nozzle is the unsung hero of precision cutting and engraving. It shapes the laser beam, controls assist gas flow, and protects your lens from damage. In this guide, we’ll break down everything you need to know to use laser nozzles like a pro—from types and selection to installation, maintenance, and troubleshooting.
What Is a Laser Nozzle & Why Does It Matter?

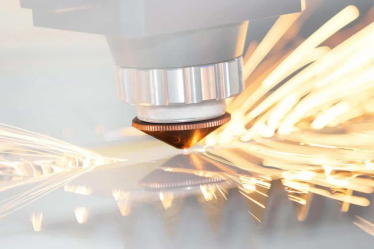

A laser nozzle is a precision component mounted at the end of a laser cutting/engraving head, typically made of brass or copper for excellent thermal conductivity. Its core jobs are:
· Guide the laser beam: Ensure the beam travels straight and concentrically to the workpiece.
· Control assist gas flow: Direct oxygen (O₂), nitrogen (N₂), or air to blow away molten material, prevent slag buildup, and cool the cut zone.
· Protect the focusing lens: Block spatter, smoke, and debris from rebounding and contaminating the lens. Even a high-power laser will underperform with the wrong or damaged nozzle—leading to slow cuts, poor edge quality, and costly rework.
Common Types of Laser Nozzles & Their Uses
Nozzles come in single-layer, double-layer, and specialized designs, each optimized for specific materials and tasks.
1. Single-Layer Nozzles
· Design: Simple, single gas channel with a straight inner bore.
· Best for: Oxygen-assisted cutting of mild/carbon steel (thin to medium thickness, 1–20mm).
· Pros: Low cost, stable gas flow, minimal maintenance.
· Cons: Not ideal for high-pressure nitrogen cutting or reflective materials.
2. Double-Layer Nozzles
· Design: Inner and outer gas channels for dual-flow control.
· Best for: Nitrogen-assisted cutting of stainless steel, aluminum, and reflective metals (1–50mm).
· Pros: Reduces turbulence, delivers clean, oxidation-free edges, minimizes dross.
· Cons: Slightly more expensive than single-layer options.
3. Nozzle Diameter Guide
|
Diameter (mm) |
Best For |
|
0.8–1.5 |
Thin materials (≤3mm), high-precision engraving, small features |
|
1.5–3.0 |
Medium thickness (4–8mm), general-purpose cutting |
|
3.0–6.0 |
Thick materials (≥9mm), high-power lasers (6kW+), fast cutting |
4. Specialized Nozzles
· Conical: Tapered inner wall for focused gas flow; ideal for high-speed precision cuts.
· Ceramic: Heat-resistant, anti-spatter; perfect for high-power or reflective materials.
· High-speed: Sharp tip with optimized inner geometry for faster cuts on thick carbon steel.
How to Choose the Right Nozzle for Your Job
Follow this simple 3-step checklist to avoid mismatches:
1. Match Material & Assist Gas
o Carbon steel + O₂ → Single-layer (1.2–2.5mm diameter).
o Stainless steel/aluminum + N₂ → Double-layer (2.0–5.0mm diameter).
o Wood/acrylic + Air → Single-layer (1.5–3.0mm diameter).
2. Align Diameter with Thickness & Power
o Thin (≤3mm) + Low power (≤3kW) → Small diameter (0.8–1.5mm).
o Thick (≥9mm) + High power (≥6kW) → Large diameter (3.0–6.0mm).
3. Prioritize Quality
o Choose precision-machined brass/copper nozzles with smooth inner bores; avoid cheap, deformed options that disrupt gas flow.
